Ultrafiltration Plant

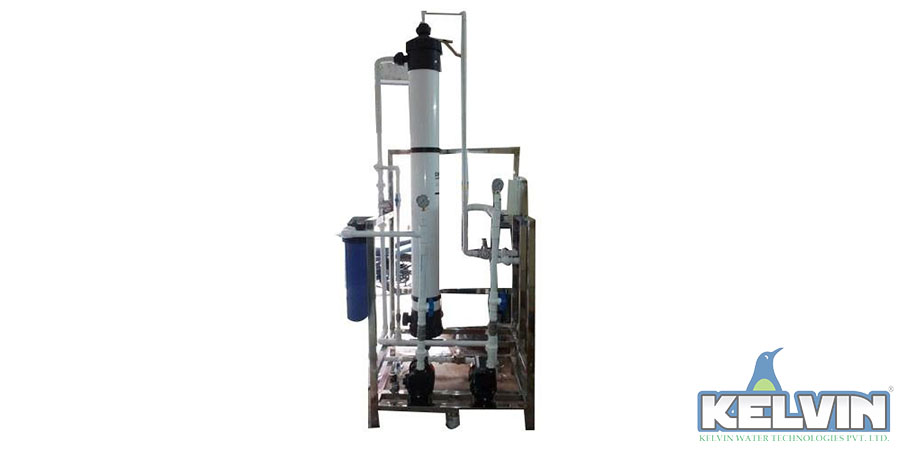

ultrafiltration plant

CAPACITY: UF PLANT 250-2000 LPH (Electricity Operated)


uf ro plant

CAPACITY: Ultra Filtration Plant (Capacity 2,000 LPH to 10,000 LPH)


Ultrafiltration Plant Applications

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

Benefits and Capacity


Electricity Operated or Hand pump operated.

Electrical & Mechanical Parts in our UF SYSTEM

  • UF Membrane module
  • Valves & Meters
  • Control System
  • Pipes and Fitting
  • 304 stainless Skid Frame
  • Preccision Filter
  • Raw water pump
  • Backwash pump
  • Fully SS Skid
  • Fully Automatic
  • High capacity 1 nos of FRP Vessel, Used for filtration that removes all sediment, color, smell and enhances taste.
  • 1 no. of Booster pump.
  • 1 nos. of membranes 250 ltr/hr.
  • Low pressure and High Pressure Switch.
  • Front Indication On/Off Switch
  • Flow meter
  • Duty Cycle continuous
  • Water Recovery 98%.

Ultra Filtration Plant(Capacity 10,000 LPH – 1,00,000 LPH)

    • 10,000 – 1,00,000 LPH
  • Power Consumption
    • 240-440 V
  • Operation Mode
    • Automatic Operated
  • Working Water Pressure
    • Minimum 4 Kg/cm2
  • Pre Filtration
    • Sand Filter+ Carbon Filter+ Micron Filter
  • Booster pump
    • Multistage Mono block Pump (2 Working )
  • UF Membrane
    • Hollow Fiber Membrane Model: ULcap 5044
  • Filtration Capacity
    • 0.01 Microns
  • Design Model
    • Different Variants as per requirement
  • Monitoring Instrument
    • Control Panel, Pressure Gauges, Flow Meter
  • Other Accessories
    • FRV Vessel, Multiport Valve, Robust Piping
  • Extra Features
    • UV sterilizer
  • Optional Features
    • Chlorine Dosing Pump 0-4lph


Brewing & Distilling
Food & Beverage
Metals Finishing
Oil & Gas
Pulp and Paper

Ultrafiltration Plant - FAQ

Q1. What is Ultrafiltration (UF) Plant?

Ans. A UF plant is used to purify water. A semipermeable membrane in UF facilitates particle separation by pressure or concentration gradient. It is more efficient than traditional filter separation.

Q2. How does an ultrafiltration system work?

Ans. Ultrafiltration systems function similarly to other types of water filtration systems. Water runs through a sediment filter, capturing particulate with the porosity of the filter. An ultrafiltration system works in the same way as a sediment filter, except that it filters anything larger than 0.025 micron, which is substantially larger than a sediment filter. We usually add a carbon filter to the system to remove undesirable taste and odour as well as suspended solids.

Q3. What contaminants does an ultrafiltration system filter out?

Ans. Any suspended particulate larger than 0.025 microns will be removed using an ultrafiltration system. Because of their size, inorganic substances, viruses, and bacteria can be filtered away. What an ultrafiltration system cannot do is extract dissolved minerals in the same way that a reverse osmosis system can. Thus, it's good at filtering particles but not so effective at eliminating dissolved solids.

Q4. What is the use of ultra-filtration?

Ans. Drinking Water: Drinking water ultrafiltration can be used to remove particles and macromolecules from raw water to make it potable. It has been used to replace present secondary (coagulation, flocculation, sedimentation) and tertiary (sand filtration and chlorination) filtering systems in water treatment plants, as well as standalone systems in remote locations with growing populations. UF is widely employed as a pre-treatment step in conjunction with primary (screening, flotation, and filtration) and some secondary treatments when treating water with high suspended particles. Concentration of proteins: The dairy industry makes extensive use of UF, particularly in the synthesis of whey protein concentrate (WPC) and lactose-rich permeate from cheese whey. In a single step, a UF technique may concentrate whey 10-30 times the feed.

Q5. What are the advantages of Ultrafiltration System?

Ans. Below are the advantages of UF system.

  • Zero Power Requirement
  • Viruses and bacteria are eliminated.
  • Deep cleaning
  • Ensures the purest kind of drinking water.
  • System with Low Maintenance and High Performance
  • Excellent Purification
